200L Three Dimensional Mixer 12r/min For Food Powder

  • 1
  • 2

Brand Name : Guojin

Model Number : THDM-200

Certification : ISO

Place of Origin : China

MOQ : 1 set

Price : Negotiable

Supply Ability : 10 sets per month

Delivery Time : 20-30days

Packaging Details : Standard export Carton

Item Name : Three Dimensional Movement Mixer For Food Powder

Application : Medicine Processing, Chemicals Processing, Food Processing

Model type : THDM-200

Barrel volume : 200L

Max loading volume : 170L

Max loading weight : 150kg

Spindle rotation speed : 12r/min

Motor power : 3kw

Weight : 750kg

Overall dimension : 1300x1600x1500mm

Contact Now

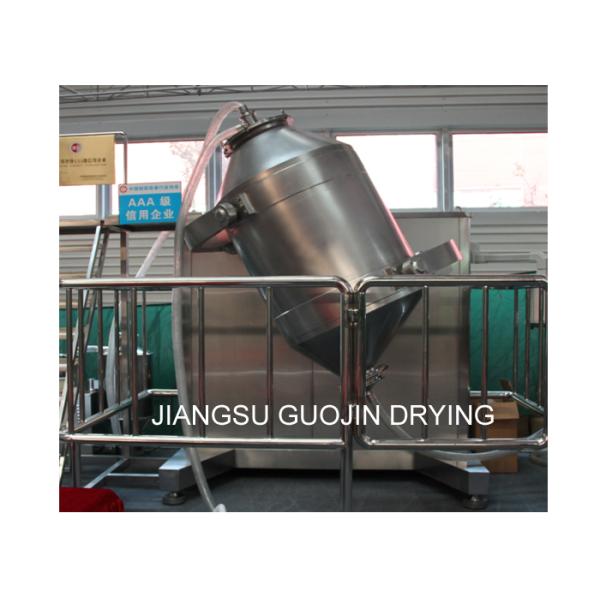

Three Dimensional Movement Mixer For Food Powder

Three dimension mixer. The mixing barrel of the machine moves in multi-direction. For the materials, there is no centrifugal function, without the specification gravity segregation and the layer division. For each of build-up phenomenon, there is the remarkable weight rate. The mixing rate is high. The machine is the desired one of various mixers at present.

Product Application
The machine is widely applied for the mixing of powder materials by pharmacy, chemicals and foodstuff industries, as well as for the quick and even mixing of various materials in different granules and gravity.

Technical Parameters

Type THDM-5 THDM-100 THDM-200 THDM-400 THDM-600 THDM-800 THDM-1000
Material barrel volume(L) 5 100 200 400 600 800 1000
Max loading volume(L) 4.25 85 170 340 510 680 850
Max loading weight(kg) 5 80 150 200 300 400 500
Spindle rotation speed(r/min) 24 15 12 10 10 10 10
Motor power(kw) 0.37 2.2 3 4 5.5 7.5 11
Overall dimensions(mm) 600*1000*1000 1200*1800*1500 1300*1600*1500 1500*2200*1500 1850*2500*1650 1900*2400*2100 1950*2500*2400
Weight(kg) 150 500 750 1200 1500 1650 1800

Product Working Principle

During the period of operation, because the mixing drum has multi-directional actions of motion, it speeds up the fluid and diffused effect of raw material. Meanwhile it avoids the phenomenon of segregation and accumulation caused by centrifugal effect in ordinary mixer and no dear corner. It can guarantee the best quality of mixed raw material.

Structure: this machine consists of stand, transmission system, electric control system, multi-directional motion mechanism, mixing drum and so on. The mixing drum contacted with raw material is made of stainless steel. The inner and outer wall of drum is polished.

200L Three Dimensional Mixer 12r/min For Food Powder

Production Show

200L Three Dimensional Mixer 12r/min For Food Powder
Contact Me
200L Three Dimensional Mixer 12r/min For Food Powder

electrical, steam, natural gas or other
